EVGA releases GTX 980 K|NGP|N Edition

by on03 February 2015


Custom high-end PCB and ACX 2.0+ cooler

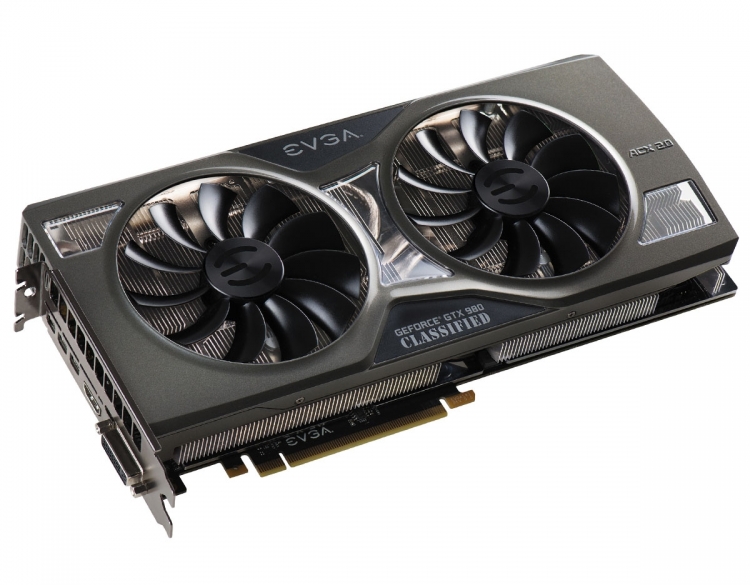

Although we knew it was coming and saw it in action during CES 2015 show in Las Vegas last month, EVGA has finally announced and launched the new EVGA GTX 980 K|NGP|N Edition graphics card.

When we saw the GTX 980 K|NGP|N Edition graphics card , we knew that this one will pack some impressive  features and a high-end custom PCB, but we were lacking the precise specifications and full feature list.

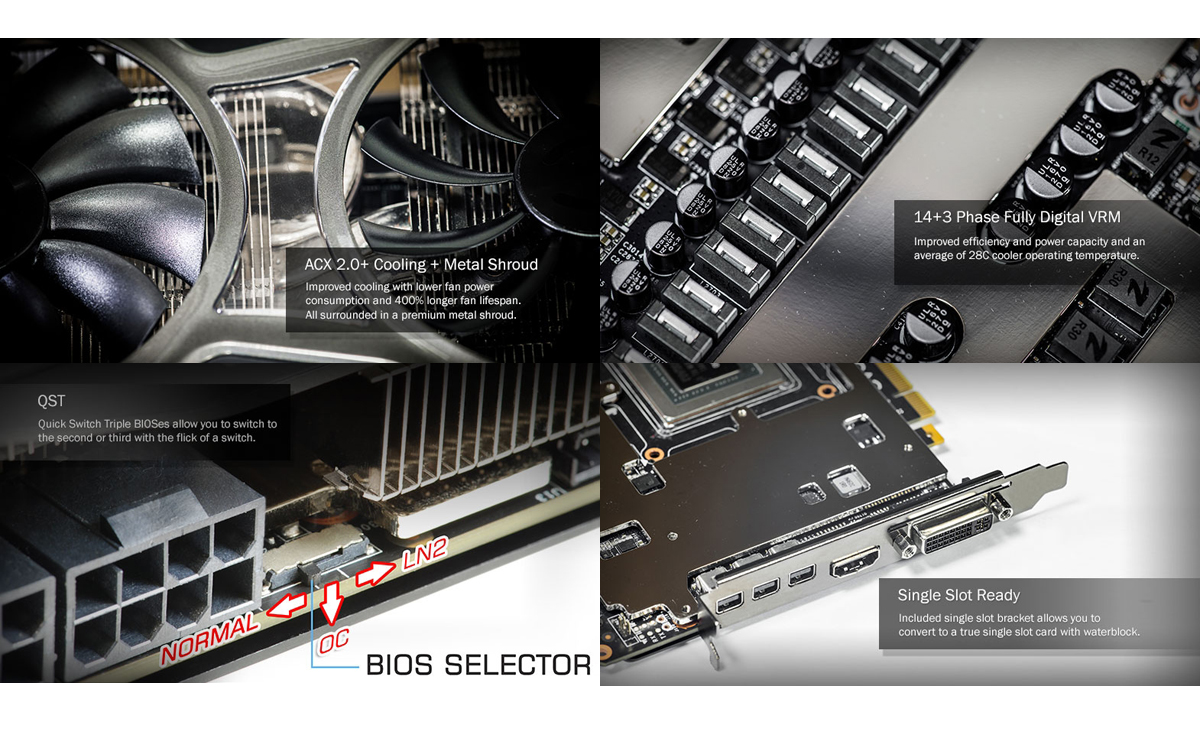

The feature and specification list of the new EVGA GTX 980 K|NGP|N Edition starts with a 12-layer custom PCB that features a 14+3-phase Fully Digital VRM, drawing power from two 8-pin and one 6-pin PCI-Express power connector.  This was why Kingpin managed to hit some insane overclocking results under LN2, pushing it all the way up to 2.2GHz for the GPU and 8.9GHz for the memory. While it is obvious that the GTX 980 K|NGP|N Edition is made for extreme overclocking, EVGA included some features that will appeal to those buyers looking for the best GTX 980 on the market, including the ACX 2.0+ cooler as well as a high-factory overclock.

In case you missed it, the EVGA GTX 980 K|NGP|N Edition is based on a  GM204 GPU with 2048 CUDA cores and features a high factory-overclock of 1291++ MHz for the GPU base and 1393++ MHz for the GPU Boost clock while 4GB of GDDR5 memory, paired up with a 256-bit memory interface, is set to work at reference 7010MHz.

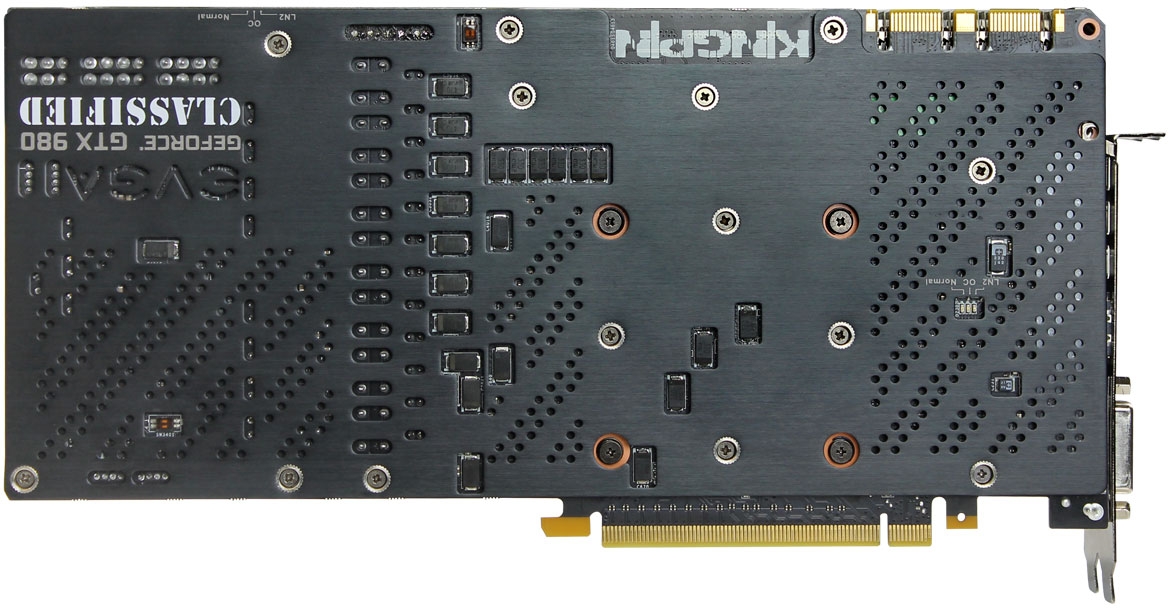

As noted, the EVGA GTX 980 K|NGP|N Edition features the new ACX 2.0+ cooler with metal shroud and double ball bearing dual fans that do not spin unless the temeperature exceedes 60 degrees. The cooler comes with Straight HeatPipes (SHP) as well as Memory MOSFET cooling plate (MMCP+), and to keep the premium look on the entire graphics card, EVGA equipped it with a rather neat backplate.

It packs some other high-end features like Quick Switch Triple (QST) BIOS, Onboard Thermal Sensors (OTS), customisable lighting, single-slot ready display output configuration which makes it suitable for a liquid cooling block and much more.

The new EVGA GTX 980 K|NGP|N Edition is up for pre-order in the US with a price set at US $749.99, while in Europe, the pre-order price is set at €749,99.

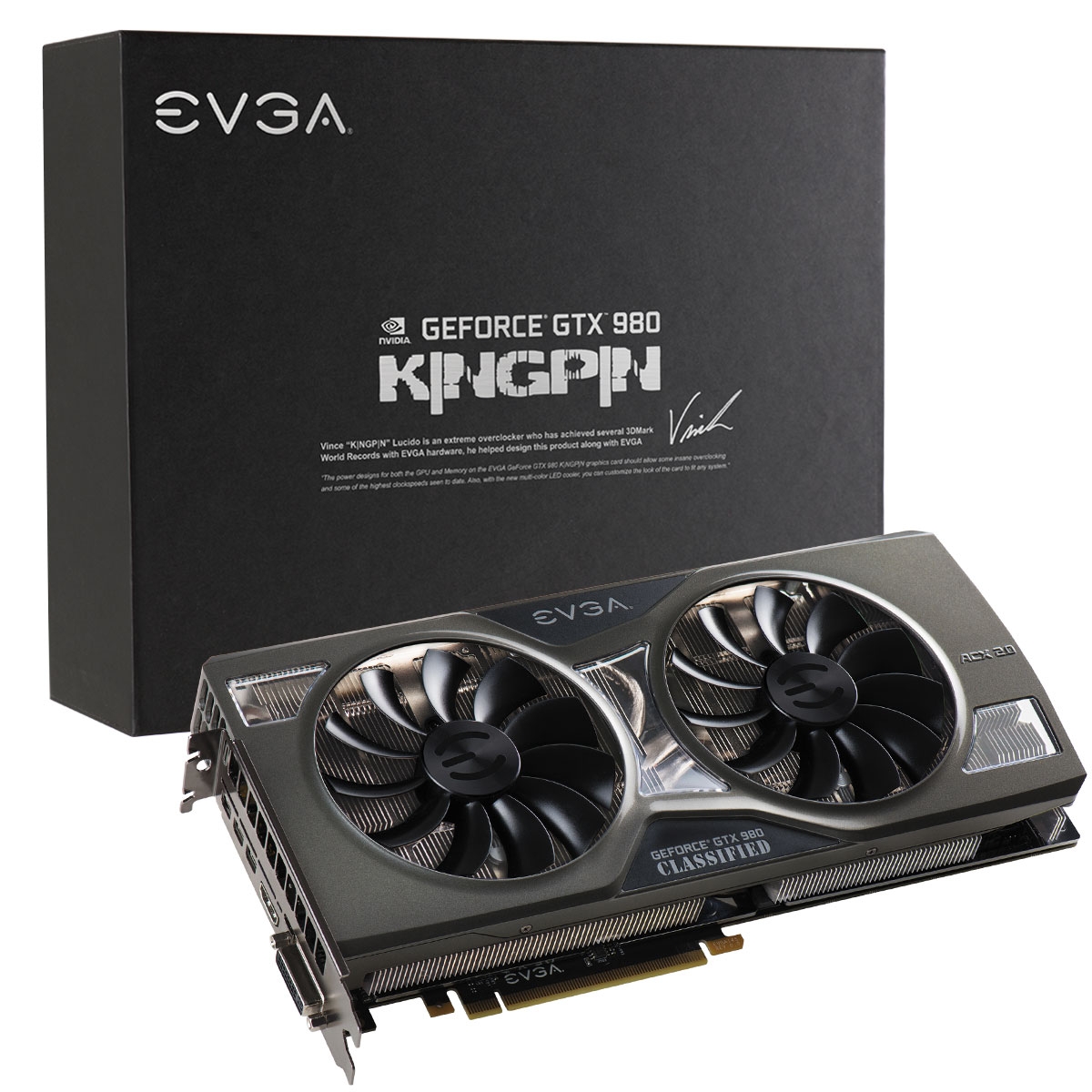

evga gtx980Kingpin32 2

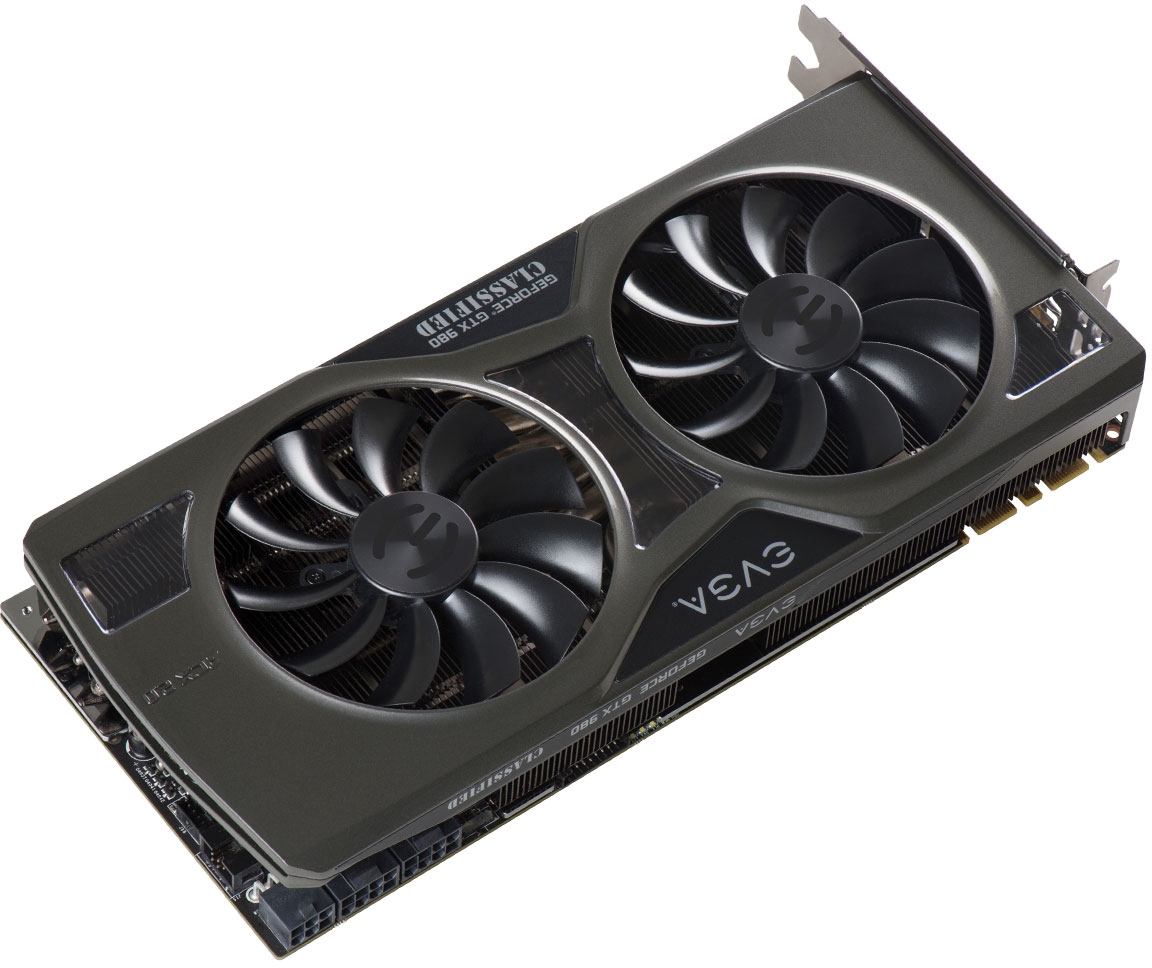

evga gtx980Kingpin32 4

evga gtx980Kingpin32 3

evga gtx980Kingpin32 1
